Angiography becomes necessary primarily to investigate symptoms or risks related to the narrowing or blockage of blood vessels, most often in the heart. The common causes leading to an angiography recommendation include chest pain (angina), unexplained pain in the chest, jaw, neck, or arm, abnormal results on stress or other noninvasive tests, known or suspected heart defects (congenital heart disease), heart failure symptoms, or prior heart attack indications.

1.1 Indications: underlying vascular conditions that require angiographic evaluation

Angiography is ordered when there is suspicion of vascular disease that requires detailed imaging. Some of the common indications include:

1. Coronary artery disease (CAD) / ischemic heart disease
   Patients with angina, positive stress tests, or acute coronary syndrome often undergo coronary angiography to locate blockages or narrowing in coronary arteries.

2. Acute myocardial infarction (heart attack)
   In acute settings, emergent angiography allows for prompt identification and revascularization (angioplasty, stent).

3. Peripheral artery disease (PAD)
   Patients with leg pain, claudication, nonhealing ulcers, or compromised blood flow to limbs may undergo peripheral angiography to map occlusions or stenoses.

4. Cerebrovascular disease / neurovascular indications
   For stroke, transient ischemic attacks (TIAs), suspected carotid stenosis, intracranial aneurysms, or arteriovenous malformations (AVMs), cerebral or carotid angiography is used to delineate vascular anatomy.

5. Renal artery stenosis / renovascular hypertension
   In cases where high blood pressure is refractory, or there is suspicion of narrowing of the renal arteries, angiography helps localize lesions.

6. Pulmonary vascular disease or anomalies
   Angiography may be used to assess pulmonary arteries (e.g. in rare vascular malformations).

7. Preoperative planning and follow-up
   Before vascular surgery, bypass grafting, or in follow-up of stents, grafts, or vascular repairs.

1.2 Risk factors and patient characteristics

Beyond disease indications, certain patient factors increase both the likelihood of vascular disease (hence need for angiography) and the procedural risks:

1. Traditional cardiovascular risk factors

   1. Hypertension

   2. Diabetes mellitus

   3. Dyslipidemia / high LDL cholesterol

   4. Smoking (current or past)

   5. Obesity, metabolic syndrome

2. Age - older patients more likely to have atherosclerosis, calcification, tortuous vessels

3. Chronic kidney disease / decreased renal function - higher risk for contrast-induced nephropathy

4. Bleeding risk / coagulopathy - patients on anticoagulants, platelet disorders

5. Contrast allergy / prior dye reaction

6. Vascular disease elsewhere - patients with known disease in one vascular bed often have disease in others

7. Anatomical factors - tortuous vessels, heavy calcification, small vessel size

8. Acute or emergency settings - angiography done emergently carries more risk than elective procedures

The primary symptoms and signs that lead doctors to recommend angiography are related to problems with blood flow or suspected blockage in the arteries or veins. People experiencing these symptoms can be at risk for serious conditions like heart disease, stroke, or peripheral artery disease, and angiography is essential for confirming diagnoses and planning treatment.

1. Cardiac / coronary circulation

1. Angina / chest pain: discomfort, pressure, tightness, heaviness in chest-sometimes radiating to arm, jaw, back

2. Unstable angina / worsening chest pain

3. Shortness of breath / dyspnea, especially with exertion

4. Fatigue, weakness

5. Palpitations, dizziness in some patients

If noninvasive tests (stress test, echocardiogram) show abnormalities, physicians may proceed to angiography.

2. Peripheral vascular symptoms

1. Claudication (leg cramps or pain while walking, relieved by rest)

2. Coldness, numbness, tingling in legs or feet

3. Nonhealing ulcers or gangrene in lower extremities

4. Weak or absent pulses in legs

5. Skin changes: pallor, hair loss, shiny skin

3. Neurological / cerebrovascular symptoms

1. Transient ischemic attacks (TIAs): temporary weakness, speech difficulty, vision loss

2. Stroke symptoms: sudden onset of weakness, slurred speech, facial droop, imbalance

3. Headaches, seizures, or symptoms suggestive of vascular malformation or aneurysm

4. Renovascular / systemic

1. Resistant hypertension (not controlled by medications)

2. Worsening kidney function / elevated creatinine

3. Episodes of flash pulmonary edema (in bilateral renal artery disease)

5. Signs on physical examination / preliminary tests

1. Bruits (vascular murmurs) over neck, carotid, renal arteries

2. Reduced pulses or asymmetry

3. Findings on ECG, echocardiogram, stress tests

4. Abnormal imaging (ultrasound Doppler, CT/MRI, perfusion scans)

5. Laboratory abnormalities (e.g. elevated lipids, renal parameters)

Angiography is a diagnostic imaging test used to visualize blood flow through arteries or veins. It involves injecting a contrast dye visible on X-rays, helping doctors detect blockages, narrowing, or abnormalities in the blood vessels.

1. Pre-procedure preparation

1. History & evaluation: allergies (especially to contrast), prior contrast reactions, renal function, comorbidities

2. Laboratory tests: creatinine, eGFR, electrolytes, hemoglobin, coagulation profile (INR, aPTT, platelets)

3. Medication review: anticoagulants, antiplatelets, metformin (for diabetic patients)

4. Hydration protocol: many centers give IV fluids before/after to protect kidneys

5. Fasting: typically nothing by mouth for 6-8 hours or per institutional protocol

6. Informed consent: explaining benefits, risks, alternatives, and obtaining consent

2. Procedure technique: conventional catheter angiography

1. Vascular access: commonly via femoral artery (groin) or radial artery (wrist)

2. Local anesthesia at puncture site

3. Sheath insertion, guidewire introduction, catheter navigation under imaging

4. Injection of contrast dye (iodinated) into target vessel

5. Fluoroscopic imaging captures vessel lumen and flow

6. Acquisition of multiple views / projections to assess vascular structure

7. Possibility of immediate intervention (angioplasty, stenting, embolization) in the same session

8. Catheter removal and hemostasis (manual pressure, closure devices)

This traditional angiography is also called digital subtraction angiography (DSA) in many cases, where "pre-contrast" images are subtracted digitally to accentuate vessel contrast.

3. Alternative / noninvasive angiographic modalities

1. CT angiography (CTA / CCTA for coronary vessels)
   Noninvasive method using CT scanner and IV contrast. Especially used as a "gatekeeper" to invasive angiography in many guidelines.

2. MR angiography (MRA)
   Uses MRI sequences and often gadolinium contrast (or non-contrast techniques) to image vessels without ionizing radiation.

3. Functional / computed physiologic angiography
   Techniques like angiography-derived FFR (fractional flow reserve) or QFR which simulate pressure-flow relations from imaging data, allowing assessment of functional significance of a stenosis without extra invasive instrumentation.

4. Imaging and analysis

1. Radiologists / cardiologists analyze images to identify location, length, severity (percentage) of stenosis / occlusion

2. Assessment of collateral circulation and vessel anatomy

3. Use of advanced imaging tools like intravascular ultrasound (IVUS) or optical coherence tomography (OCT) or pressure wires (FFR) to guide decision-making.

4. In coronary angiography, quantitative coronary angiography (QCA) is used to precisely measure lumen dimensions, stenosis, and changes over time.

5. In more advanced settings, 3D QCA, angiography-derived physiologic indices, or AI / computational models may be integrated.

5. Interpretation of results & decision-making

1. Pinpoint which vessels are narrowed or blocked, how severely (e.g. 50%, 70%, 90%)

2. Determine whether lesions are hemodynamically significant or likely to cause ischemia

3. Decide whether medical therapy, angioplasty / stenting, or surgical bypass is appropriate

4. Correlate imaging with patient symptoms and noninvasive testing

Treatment options following angiographic findings depend on the severity and location of arterial blockages. The results guide clinicians in choosing between medication-based, interventional, or surgical strategies to restore or improve blood flow.

1. Medical / conservative therapy

For many cases, especially mild or non-critical lesions, medical management is first line:

1. Lifestyle modifications:

   1. Diet (low saturated fat, low salt, fiber-rich)

   2. Exercise (aerobic and resistance training)

   3. Smoking cessation

   4. Weight control

2. Risk factor control:

   1. Hypertension (ACE inhibitors, ARBs, beta blockers)

   2. Diabetes / glycemic control

   3. Dyslipidemia (statins, PCSK9 inhibitors in select patients)

3. Anti-platelet therapy (aspirin, P2Y12 inhibitors)

4. Anti-anginal / symptomatic medications (nitrates, beta blockers, calcium channel blockers)

5. Control of comorbid conditions (e.g. heart failure, arrhythmias)

2. Endovascular / catheter-based interventions

During or following angiography, many interventions may be done:

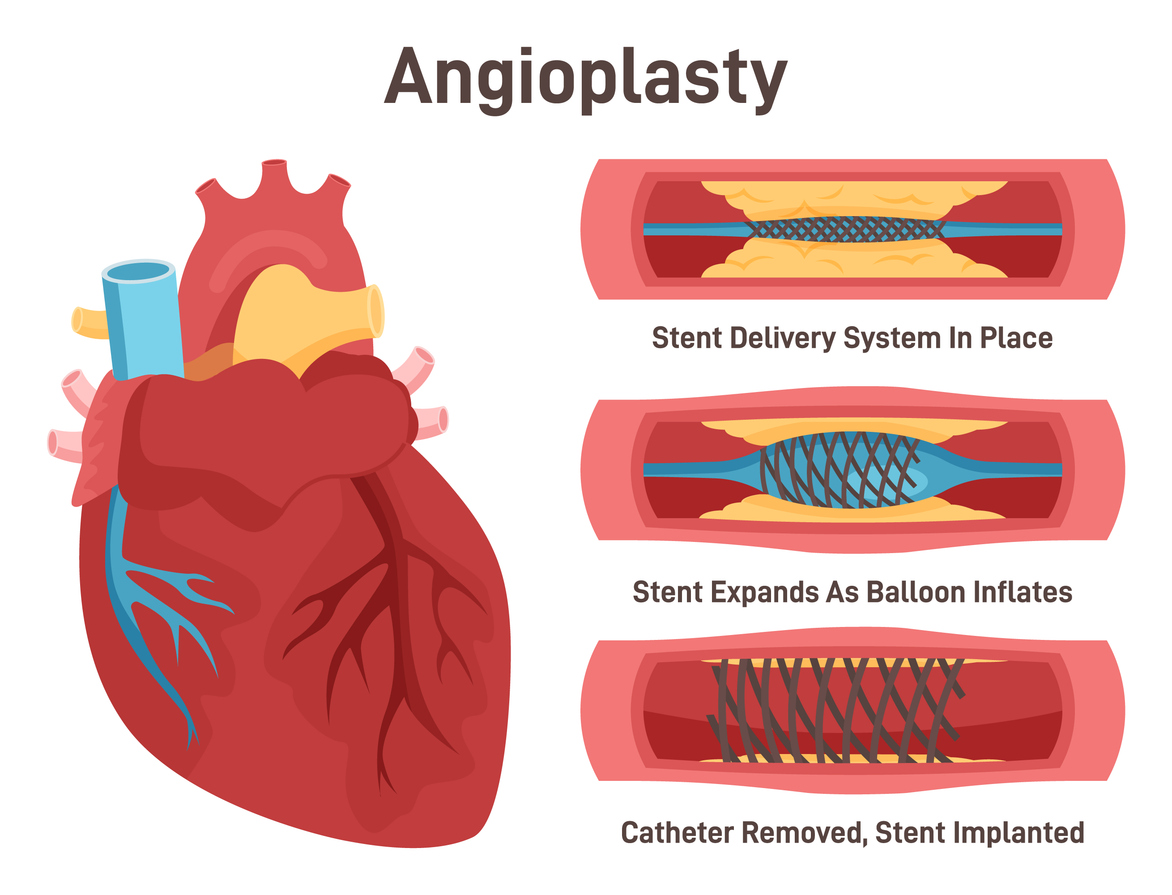

1. Percutaneous transluminal angioplasty (PTA / balloon dilation)
   Inflation of a balloon inside the vessel to widen the lumen.

2. Stent implantation (bare-metal, drug-eluting, or covered stents)

3. Drug-eluting balloon / coated balloon techniques

4. Thrombectomy / clot removal in acute occlusions

5. Atherectomy / plaque modification in heavily calcified lesions

6. Embolization (in cases of bleeding, vascular malformations)

7. Use of intravascular imaging / physiologic tools (IVUS, OCT, FFR, angiography-derived QFR) to optimize results and avoid unnecessary stenting

3. Surgical / open techniques

In some cases, open surgery is preferred:

1. Bypass grafting (e.g. coronary artery bypass graft, peripheral bypass)

2. Endarterectomy (e.g. carotid endarterectomy)

3. Open vascular reconstruction / aneurysm repair

4. Choosing the right treatment

The decision depends on:

1. Severity and complexity of lesions

2. Patient's symptoms and quality of life

3. Risks vs benefits (comorbidities, surgical risk)

4. Anatomic suitability for endovascular vs surgical options

5. Institutional expertise / physician experience

Prevention and management in angiography focus on two key aspects - preventing cardiovascular disease (to avoid the need for angiography) and ensuring proper care and monitoring after angiography or angioplasty. These steps aim to promote arterial health, minimize complications, and prevent recurrence of blockages.

1. Primary prevention

1. Healthy diet: emphasis on vegetables, fruits, whole grains, low saturated fat

2. Regular physical activity (150 minutes/week moderate intensity)

3. Smoking cessation (most impactful modifiable factor)

4. Weight management / maintaining ideal BMI

5. Regular screening and control of hypertension, diabetes, dyslipidemia

6. Manage other risk factors (stress, sleep apnea)

2. Secondary prevention (after vascular disease or angiography)

1. Strict adherence to medications: antiplatelets, statins, BP agents

2. Lifestyle reinforcement

3. Frequent follow-up and noninvasive surveillance (Doppler ultrasound, CT/MR angiography as needed)

4. Monitoring kidney function (especially if repeated contrast use)

5. Patient education about symptoms of recurrent vascular events

3. Minimizing angiography-related risks in subsequent procedures

1. Use low or iso-osmolar contrast agents

2. Minimize contrast volume per procedure

3. Hydration protocols before and after angiography

4. Pre-screen for contrast allergy; premedicate if required

5. Use safer access sites (radial over femoral when feasible)

6. Careful vascular technique to minimize trauma

7. Good hemostasis and post-procedure care

Angiography is considered a safe diagnostic imaging procedure, but it carries some risk of complications due to its invasive nature and use of contrast dye. Most issues are minor and short-lived, though rare serious complications can occur depending on patient health and procedural factors.

1. Minor / common complications

1. Access site bleeding / hematoma / bruising

2. Pain or discomfort at puncture site

3. Local infection / inflammation

4. Mild contrast reactions (rash, itching)

5. Transient worsening of renal function (especially in susceptible individuals)

2. Major / serious complications (rare but important)

1. Major bleeding, may require transfusion or surgical intervention

2. Pseudoaneurysm formation at access site

3. Arteriovenous fistula

4. Arterial dissection or vessel perforation

5. Embolism / downstream ischemia (cholesterol, plaque, clot)

6. Stroke / neurologic injury (notably in cerebral angiography)

7. Myocardial infarction / arrhythmia

8. Contrast-induced nephropathy / acute kidney injury

9. Allergic or anaphylactic reactions to contrast

10. Death (extremely rare)

Incidence and risk context:

1. In elective coronary angiographies, serious complications occur in < 1 per 1,000 patients.

2. Neurologic complications in cerebral angiography are low; a large series reported permanent stroke in ~0.14% of cases.

3. Risk increases with comorbidities, contrast load, longer procedures, emergent setting.

3. Predictors / risk modifiers for complications

1. Reduced baseline kidney function

2. Older age, frailty

3. Uncontrolled hypertension

4. Bleeding disorders or anticoagulant therapy

5. Multiple comorbidities (heart failure, vascular disease)

6. Complex vascular anatomy (tortuosity, calcification)

7. Emergency vs elective procedure

Living after angiography or angioplasty involves a combination of careful recovery, cardiac rehabilitation, and long-term lifestyle modification. With appropriate care, most patients return to normal activities and enjoy an improved quality of life while minimizing the risk of recurrence.

1. Immediately post-procedure

1. After removing the catheter, hemostasis (pressure, closure devices) is applied

2. Observation in recovery area: monitor vitals, access site, neurologic signs

3. With femoral access, the patient often lies flat for several hours; radial access may allow earlier mobility

4. Hydration (oral / IV) to help flush contrast

5. Pain management (mild discomfort is common)

2. Hospital stay and discharge

1. For diagnostic angiography only, many patients go home the same day or after a brief stay

2. If intervention (angioplasty / stent) was done, or if general anesthesia used, stay may be 1-2 or more days

3. Before discharge, instructions are given about wound care, activity limitations, medications

3. Home care & restrictions

1. Rest for remainder of the day

2. Avoid heavy lifting, bending, strenuous activity involving access limb for several days

3. Keep access site dry and clean; avoid immersion (swimming, baths) until wound heals

4. Watch for signs of bleeding, swelling, pain, or infection

4. Returning to normal life

1. Light walking / gentle activity often resumed within a day or two (depending on access site)

2. Driving: often restricted for 24 hours or more, depending on institutional guidelines

3. Return to work: varies depending on the complexity of the procedure and intervention (from a few days to several weeks)

4. Follow-up imaging or noninvasive tests as recommended

5. Long-term outlook & prognosis

1. Many patients experience symptom relief (e.g. less angina, better walking capacity)

2. Long-term success depends on control of underlying disease, lifestyle changes, medication adherence

3. Some patients may require repeat angiography or intervention if disease progresses

4. The angiographic procedure itself rarely causes lasting disability; most complications, if they occur, are identified and managed early

6. Patient education & monitoring

1. Awareness of warning signs (chest pain, worsening limb pain, neurological symptoms)

2. Regular follow-up with cardiology / vascular specialist

3. Adherence to medications (antiplatelets, statins, BP control, etc.)

4. Monitoring for kidney function periodically

5. Healthy lifestyle reinforcement

1. What is Angiography?

Angiography is a medical imaging technique used to visualize the inside of blood vessels, including arteries, veins, and the heart chambers. It helps doctors detect blockages, narrowing, or abnormalities in the blood vessels that may lead to conditions such as heart attacks, strokes, or peripheral vascular disease.

The procedure involves injecting a special contrast dye into the bloodstream and taking X-ray or advanced imaging scans to observe blood flow and vessel structure in real time.

---

2. Why is Angiography performed?

Angiography is commonly performed to:

1. Detect coronary artery disease (CAD)

2. Evaluate blood vessel blockages or narrowing

3. Identify aneurysms, malformations, or blood clots

4. Assess blood flow to organs and tissues

5. Guide interventional procedures like angioplasty or stent placement

It helps physicians make informed decisions about treatment plans, including surgery, medication, or minimally invasive interventions.

---

3. How is an Angiography procedure performed?

Angiography is usually performed in a specialized imaging suite under local anesthesia or mild sedation. The steps include:

1. A catheter is inserted into a blood vessel, often in the groin or arm.

2. A contrast dye is injected through the catheter.

3. X-ray, CT, or MRI scans are taken to visualize blood flow and detect abnormalities.

4. If necessary, treatments like angioplasty or stent placement may be done immediately.

The entire procedure typically lasts 30-60 minutes, depending on the complexity.

---

4. Is Angiography safe?

Angiography is generally safe, especially when performed by an experienced cardiologist or radiologist. Risks are low but may include:

1. Allergic reactions to the contrast dye

2. Bleeding or bruising at the catheter insertion site

3. Infection (rare)

4. Blood vessel damage or clot formation (rare)

Your doctor will assess your medical history and take necessary precautions to minimize risks.

---

5. How should I prepare for an Angiography?

Preparation steps typically include:

1. Fasting for 6-8 hours prior to the procedure

2. Discontinuing certain medications such as blood thinners (as advised by your doctor)

3. Informing the doctor about allergies, kidney problems, or existing medical conditions

4. Arranging transportation, since you may feel drowsy after sedation

Your healthcare team will provide detailed instructions tailored to your health condition.

---

6. Does Angiography hurt?

Most patients feel minimal discomfort during the procedure. Local anesthesia is applied at the catheter insertion site, which may cause a brief stinging sensation. Some patients feel pressure or mild warmth when the contrast dye is injected, but severe pain is uncommon.

After the procedure, there may be temporary soreness or bruising at the insertion site, which typically resolves within a few days.

---

7. How long does it take to recover from Angiography?

1. Immediate recovery: Patients usually rest for 2-6 hours to prevent bleeding at the catheter site.

2. Same-day discharge: Most people can go home the same day if no interventions like stenting are performed.

3. Full recovery: Normal activities can usually be resumed within 1-3 days, but heavy lifting or strenuous exercise should be avoided for at least a week.

Your doctor will provide specific post-procedure instructions to ensure safe recovery.

---

8. What are the different types of Angiography?

There are several types of angiography, including:

1. Coronary Angiography: Examines blood vessels supplying the heart

2. Cerebral Angiography: Visualizes blood vessels in the brain

3. Peripheral Angiography: Checks arteries in the arms, legs, or other extremities

4. CT Angiography (CTA): Uses CT scans for a detailed 3D view

5. MR Angiography (MRA): Uses MRI scans for non-invasive vessel imaging

The choice depends on the area being examined and the specific medical condition.

---

9. What are the risks and complications of Angiography?

Although angiography is safe, potential risks include:

1. Minor bruising or bleeding at the catheter site

2. Allergic reactions to contrast dye

3. Kidney problems in patients with pre-existing kidney disease

4. Rare complications like stroke, heart attack, or blood vessel injury

Your doctor will weigh the benefits against potential risks and monitor you closely during and after the procedure.

---

10. How soon will I get the results of Angiography?

1. Immediate results: During the procedure, your doctor can often see blockages or narrowing in real time.

2. Detailed report: A formal report and imaging review are usually available within 24-48 hours.

3. Based on the results, your doctor will recommend the next steps, such as medication, angioplasty, or surgical intervention.
